Frame grabber Matrox Rapixo CXP

Frame grabber Matrox Rapixo CXP

Multi-link CoaXPress® 2.0 frame grabbers with optional FPGA-based image processing offload

Matrox Rapixo CXP at a glance

  • Support for the highest speeds available in CoaXPress 2.0;
  • Connect and capture from up to four cameras or combine connections for even higher data rates;
  • PoCXP support simplifies cabling between cameras and vision computer;
  • Offload host computer of custom image processing using FPGA device;
  • Auxiliary I/Os per CXP connection to synchronize with sensors, encoders, and controllers;
  • License fingerprint for MIL software avoids the need for a separate hardware key.

Description

Interface cards for high-speed imaging

Matrox® Rapixo CXP is a new generation of frame grabbers, supporting version 2.0 of the CoaXPress® (CXP) digital interface standard for machine vision applications. The Matrox Rapixo CXP family supports data rates of either up to 6.25 Gbps (CXP-6) or up to 12.5 Gbps (CXP-12). A PCIe® x8 host interfaces comfortably matches the maximum input bandwidth from the CXP links. The CXP links are accessed through high-density BNC connectors allowing for a homogenous interconnection with new cameras. Power-over-CoaXPress (PoCXP) support on each connection simplifies system configurations, combining the camera’s power interface with its command- and data-interface onto the same coaxial cable. The Matrox Rapixo CXP features four connections for interfacing to independent cameras as well as for handling higher data rates through connection aggregation. The Matrox Rapixo CXP family possess sufficient onboard memory to buffer incoming image data in situations where the host computer is temporarily unable to accept data. The fanless design for select models ensures extended use without maintenance.

Offload host computer of custom image processing using a FPGA

The Matrox Rapixo CXP Pro makes use of a field-programmable gate array (FPGA) device from the Xilinx Kintex® UltraScale™ family for not only integrating the controlling, formatting, and streaming logic of the various interfaces, but also allowing developers to incorporate Matrox Imaging- or user-developed custom image pre-processing operations to offload from the host computer. A variety of FPGA sizes are available for the Matrox Rapixo CXP Pro, providing a range of solutions tailored to a given application. Operations performed on-board are controlled through Matrox Imaging Library (MIL) application-development software. Within MIL, an existing FPGA configuration can be rearranged to perform a required sequence of operations without necessarily having to generate a new FPGA configuration. Using the Matrox FPGA Development Kit (FDK), developers generate their own FPGA configurations with custom operations written in C/C++.

Pairs with MIL1 software

Matrox Rapixo CXP boards supports 64-bit Windows® and Linux® through the latest MIL software. The card also acts as a license fingerprint and can store a supplemental license for MIL software, avoiding the need for a separate hardware key.

Field-proven development software

The Matrox Rapixo CXP family is supported by MIL1 software - a comprehensive software development kit (SDK) with a 25-year history of reliable performance. This toolkit features interactive software and programming functions for image capture, processing, analysis, annotation, display, and archiving operations, with the accuracy and robustness needed to tackle the most demanding applications. Refer to the MIL datasheet for more information.

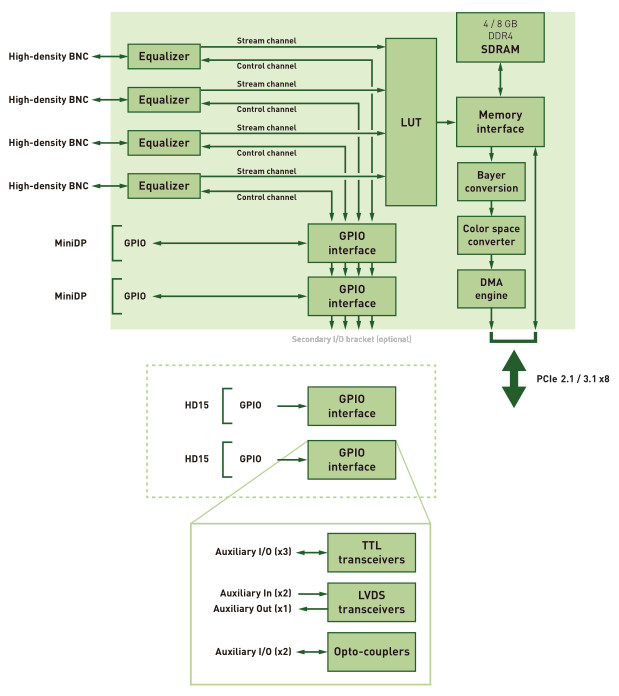

Matrox Rapixo CXP Quad

Matrox Rapixo CXP

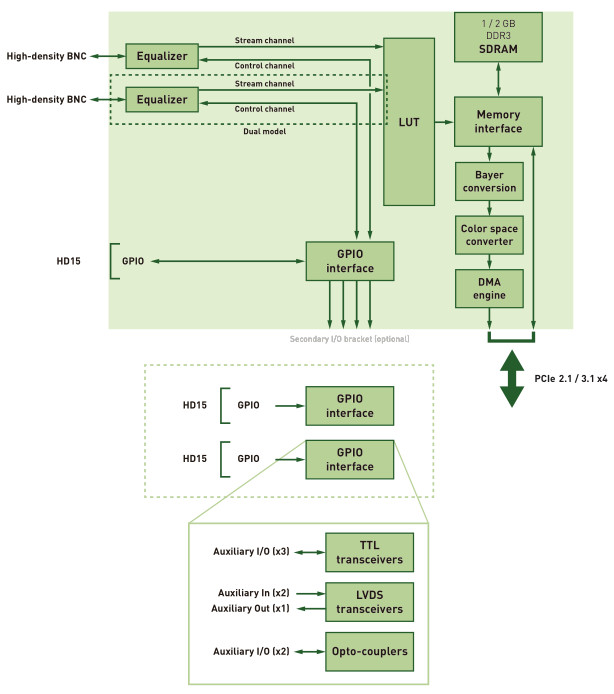

Matrox Rapixo CXP Single/Dual

Matrox Rapixo CXP

_____
1. The software may be protected by one or more patents; see www.matrox.com/patents for more information.

Technical specification

HARDWARE
Model Matrox Rapixo CXP Quad Matrox Rapixo CXP Single/Dual
Host interface
Interconnect: PCIe 2.1 / 3.1 x82 PCIe 2.1 / 3.1 x42
Camera/video interface
Standard: CXP version 2.0
Configuration: Four (4) connections One (1) or two (2) connection(s)3
Speeds: 1.25 / 2.5 / 3.125 / 5 / 6.25 / 10 / 12.5 Gbps (CXP-1, 2, 3, 5, 6, 10, and 12 respectively)
Streams: Up to eight (8) total
Connectors: High-density BNC
Power output: PoCXP from PC power supply via 6-pin connector
Miscellaneous: Connection-status indicator LEDs
Memory:
Type: DDR4 SDRAM DDR3 SDRAM
Quantity: 4 or 8 GB 1 or 2 GB
Purpose: Image buffering and processing
Image processing capabilities
On-board look-up table: 8- / 10- / 12-bit support
On-board Bayer interpolation: GB, BG, GR, and RG pattern support
On-board color space conversion: Input formats: 8- / 16-bit mono/Bayer, 24- / 48-bit packed BGR
Output formats: 8- / 16-bit mono, 24- / 48-bit packed/planar BGR, 16-bit YUV, 16-bit YCbCr, 32-bit BGR
Custom processing: Matrox- or user-developed using Xilinx Vivado® Design Suite and Matrox FPGA Development Kit (FDK) N/A
General purpose I/Os
Types: Three (3) TTL I/Os per connector
Two (2) LVDS inputs per connector
One (1) LVDS output per connector
Two (2) opto-isolated inputs per connector
Connectors: Two (2) mDP connectors on main I/O bracket accessed through a mDP-to-HD15 adaptor
Two (2) HD15 connectors on secondary I/O bracket
One (1) HD15 connector on main I/O bracket
Two (2) HD15 connectors on secondary I/O bracket
Physical
Form factor: Half-length, full-height, PCIe add-in card
Product dimensions (L x W x H): 16.76 x 1.871 x 11.12 cm (6.6 x 0.737 x 4.376 in)3
Power consumption: 17.33 W (typical)4 TBD
Environmental
Operating temperature: 0°C to 55°C (32°F to 131°F)5
Operating relative humidity: Up to 95% (non-condensing)
Certifications
  FCC Class A, CE Class A (EN55032, EN55024), ICES-003 / NMB-003 Class A, RCM Class A, KC Class A

SOFTWARE
Compatible software: Matrox Imaging Library (MIL) 106
Operating system support: Windows 7 (64-bit), Windows 10 (64-bit), Linux (64-bit)
Licensing provisions: MIL license fingerprint and storage



Ordering Information

HARDWARE
Part number Description
RAP 1G 1C12 Matrox Rapixo CXP Single CXP-12 PCIe 2.1 x4 frame grabber with 1 GB DDR3 SDRAM and passive heatsink.
Note: Cable adaptors for second and third GPIO sets sold separately.
RAP 2G 2C12 Matrox Rapixo CXP Dual CXP-12 PCIe 3.1 x4 frame grabber with 2 GB DDR3 SDRAM and passive heatsink.
Note: Cable adaptors for second and third GPIO sets sold separately.
RAP 4G 4C6 Matrox Rapixo CXP Quad CXP-6 PCIe 2.1 x8 frame grabber with 4 GB DDR4 SDRAM and passive heatsink. Includes one (1) mDP-to-HD15 GPIO cable adaptor.
Note: Cable adaptors for second, third, and fourth GPIO sets sold separately.
RAP 4G 4C12 Matrox Rapixo CXP Quad CXP-12 PCIe 3.1 x8 frame grabber with 4 GB DDR4 SDRAM and passive heatsink. Includes one (1) mDP-to-HD15 GPIO cable adaptor.
Note: Cable adaptors for second, third, and fourth GPIO sets sold separately.
RAP 8G 4C12 P352 Matrox Rapixo CXP Pro Quad CXP-12 PCIe 3.1 x8 frame grabber with 8 GB DDR4 SDRAM, Xilinx Kintex Ultrascale KU035 FPGA, and active heatsink (fansink). Includes one (1) mDP-to-HD15 GPIO cable adaptor.
Note: Cable adaptors for second, third, and fourth GPIO sets sold separately.
Contact Matrox Imaging for other part numbers, including those for custom onboard processing.

ACCESSORIES
Part number Description
RAPACCKIT01 Accessory kit for Matrox Rapixo CXP Quad. One (1) additional mDP-to-HD15 GPIO cable adaptor and one (1) secondary dual HD15 I/O bracket with ribbon cable.
RAPACCKIT02 Accessory kit for Matrox Rapixo CXP Single/Dual. Include one (1) secondary dual HD15 I/O bracket with ribbon cable.
HDBNC2BNC One (1) 12 in or 30 cm HDBNC-male-to-BNC-female adaptor cable.

SOFTWARE
Refer to MIL datasheet and Matrox FDK datasheet.

_____
1. The software may be protected by one or more patents; see www.matrox.com/patents for more information.
2. Model dependent.
3. Dimensions (length x width x height) are taken from bottom edge of goldfinger to top edge of board. These measurements do not include mounting bracket.
4. Matrox Rapixo CXP Pro model power consumption is dependent on FPGA device and onboard processing workload.
5. Models with passive heatsink require a minimum ventilation of 150 LFM (linear feet per minute) in a single board configuration. Contact a sales representative for ventilation requirement for multiple board configurations.
6. Through an update.
