Camera Lucid Atlas ATX650G-C

Camera Lucid Atlas ATX650G-C

High speed industrial camera with color Gpixel GMAX3265 sensor and GigE Vision interface, which allows to capture high-quality images at 65 MP at 14.1 fps.

Atlas is a GigE Vision and GenICam compilant camera capable of 1.2 GB/s data transfer rates (10Gbps), allowing for high resolutions and frame rates over standard copper Ethernet cables up to 25 meters. It features a TFL lens mount and Active Sensor Alignment for superior optical performance.

Description

Features:

  • Resolution: 9344 x 7000 pixels (65 MP) in color.
  • Frames per second: 14.1 fps at full resolution.
  • Sensor: CMOS Global Shutter sensor Gpixel GMAX3265.
  • Video Interface: 10GBASE-T, M12, PoE
  • Lens Mount: TFL
  • Recording Features: Various recording features like region of interest (ROI) and sequence modes.

Atlas10 10GigE Models

10 Gigabit Ethernet with Power over Ethernet (PoE) paired with Sony’s 4th generation Pregius-S CMOS sensors allows the Atlas10 to reach faster frame rates at high resolutions over a single cable. The 10GigE interface also allows Pregius-S sensors to run at high bit depths (10/12-bit ADC), helping to maximize image quality while still maintaining smooth frame rates. With the option to reduce the region of interest (ROI), along with binning and decimation options, users can unlock even higher frame rates on the Atlas10.

Atlas10 10GigE Models

High Resolution Pregius Sensors

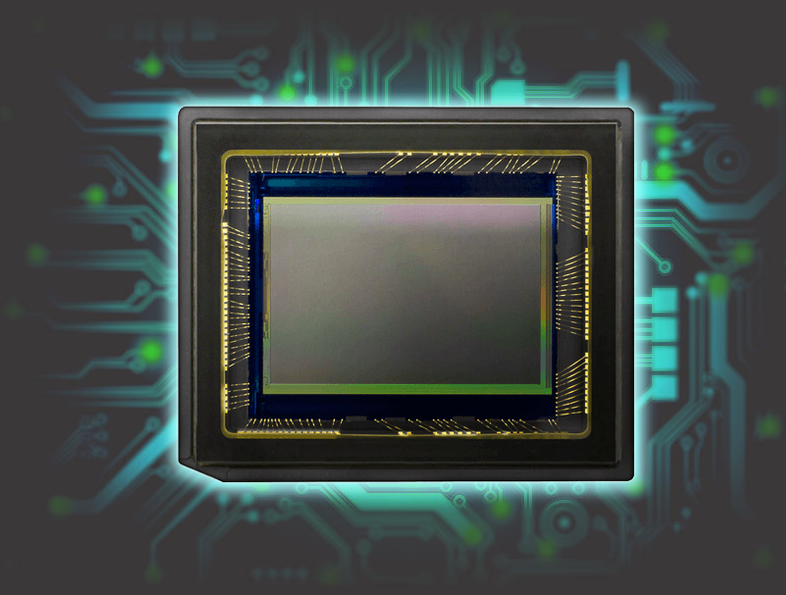

The Triton machine vision camera delivers the incredible quality and performance of Sony Pregius™ sensors – the industry leading global shutter CMOS sensor. Sony’s global shutter technology captures crystal clear, non-distorted images with exceptionally low read noise and very high dynamic range.

High Resolution Pregius Sensors

Active Sensor Alignment

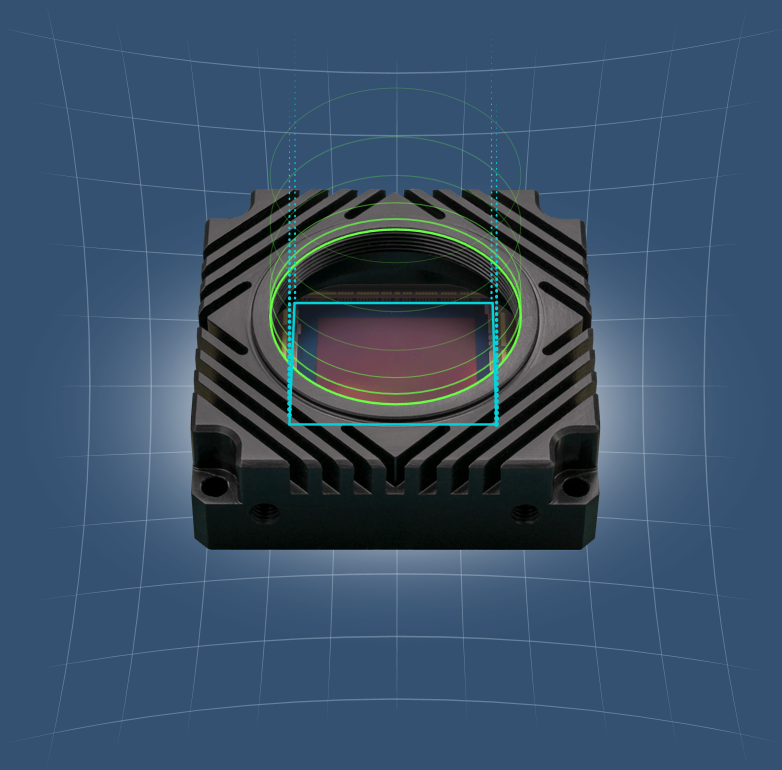

With larger sensors, minor discrepancies in sensor tilt and rotation can have a negative impact on imaging. That is why all Atlas cameras are actively aligned to minimize sensor tilt and rotation, and to place the center of the image sensor at the lens optical axis. The result is a precisely attached large format sensor that is aligned to the lens mount so that images are sharp and crisp, even in the corners. Learn more about our Active Sensor Alignment process in Lucid tech brief.

Active Sensor Alignment

Stream 1.2 GB/s Over CAT5e / CAT6 Cables

Boost your application with high speed Ethernet technology

Achieve fast frame rates on the latest Pregius sensors with 10GBASE-T bandwidth. The Atlas10 enables 10GBASE-T bandwidth using "Short Reach Mode", allowing for long CAT6a cable lengths up to 25m. Compatible with 10GBASE-T IEEE 802.3an interface cards and switches as well as IEEE 802.3bz interface cards and switches that support 5GBASE-T (over 600MB/s) and 2.5GBASE-T (300 MB/s) standards. Also backwards compatible with 1GbE connections.

10Gbps - 10x GigE Vision Speeds with Power over Ethernet (PoE)

Power over Ethernet (PoE) allows both data and power over one M12 Ethernet cable, this adds value by reducing the number of cables needed and minimizing future maintenance.

The Atlas is compatible with 3rd party software and hardware vendors that are GigE Vision compliant. This ensures reliable and consistent operations across different vendors.

M12 and M8 Connectors

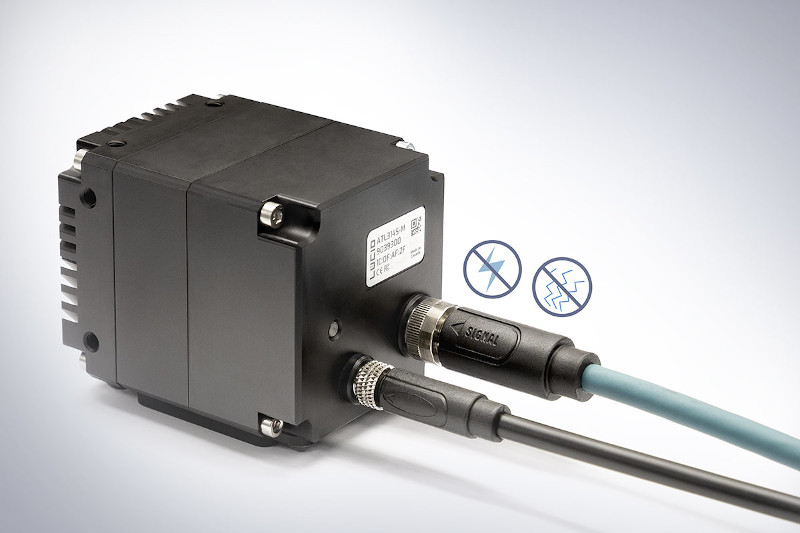

The M12 Ethernet and M8 GPIO connectors are designed to withstand the demands of an industrial environment. The M12 Ethernet connector is standardized as IEC 61076-2-109 and is included in the GigE Vision standard. Its rugged design allows for resistance against strong vibration and protection against electrical interference. The secure 8 pin M8 GPIO connector is standardized to IEC 61076-2-104 with an opto-coupled input line, an opto-coupled output line, and two bidirectional lines. M12 Ethernet and M8 GPIO connections are the superior choice for demanding applications such as industrial, automotive, agriculture, process control, food and beverage, and medical applications.

M12 and M8 Connectors

The Perfect Fit

TFL-Mount - JIIA Lens Standard Built for Large Format Sensors

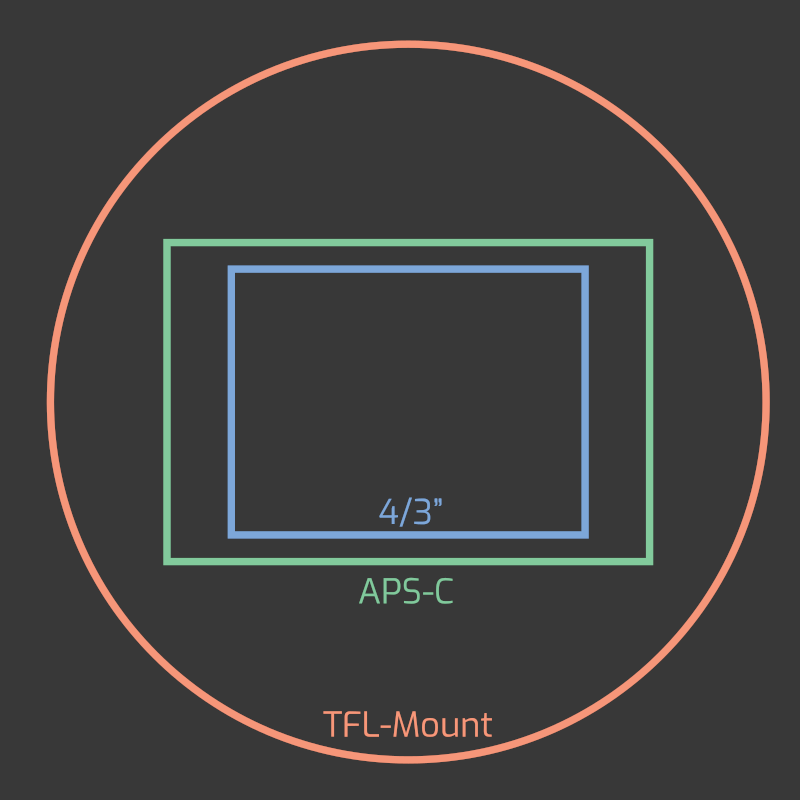

The TFL-mount is designed specifically for large format sensors while maintaining an efficient size. This Japan Industrial Imaging Association (JIIA) lens standard uses a 35 mm mount size with a back flange focal distance (BFD) of 17.526mm. The TFL-mount can also take advantage of F-mount lenses with the addition of a ring adapter.

The Perfect Fit

Arena SDK

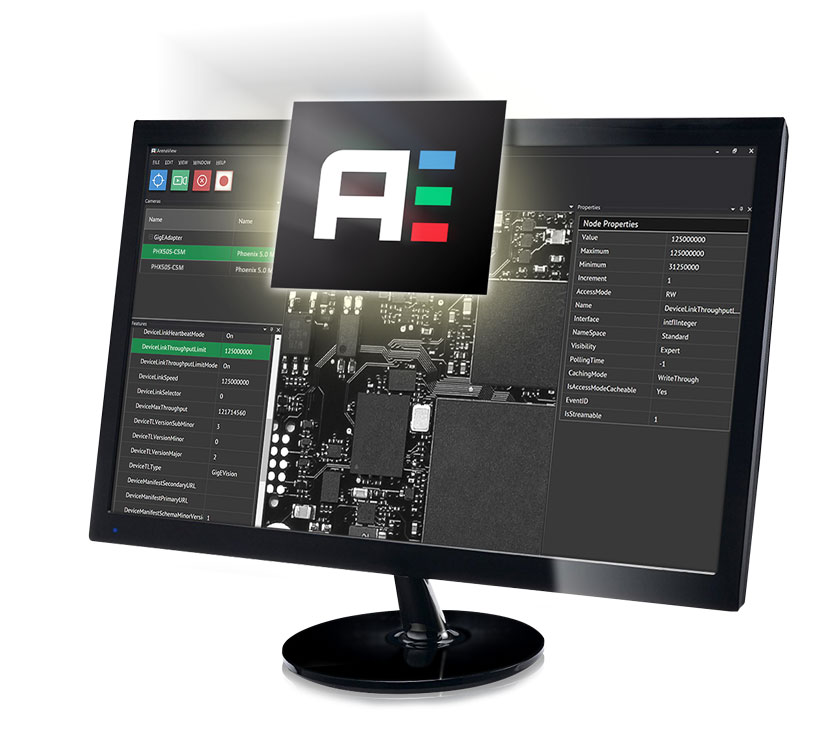

Welcome to our powerful software development kit called Arena. The Arena SDK is designed from the ground up to leverage the high resolution Atlas camera. It works fast with less functions calls and is simpler to use thanks to its modern GUI based on the GenICam standard.

  • Includes example code and a robust set of APIs.
  • Search for help topics in our easy-to-use HTML5 documentation
  • Arena UI toolkit for rapid development of custom GUIs
  • ArenaView GUI for image acquisition and camera configuration

Arena SDK

Technical specification

Model name ATX650G-C
Product family Atlas
Product type Area scan
Sensor name Gpixel GMAX3265
Sensor type CMOS
Sensor size (H x V), format 29.90 mm x 22.40 mm, 2.3″
Pixel size (H x V) 3.2 µm x 3.2 µm
Color/Mono Color
Resolution (H x V), MP 9344 x 7000 px, 65 MP
Frame rate 14.1 fps
ADC 12 bit
Dynamic Range 65.2 dB
Shutter Global
Exposure Range 24.9 µs to 10 s
Synchronization Software trigger, hardware trigger, PTP (IEEE 1588)
Inputs/Outputs 1 opto-isolated input, 1 opto-isolated output, 2 bi-directional
Image Buffer 380 MB
Lens Mount TFL
Interface 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX M12, PoE
Machine Vision Standard GigE Vision v2.0
Power Requirements PoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption (Maximum) 12W via PoE, 11.5W when powered externally
Housing Type Box
Dimensions (L x W x H) 55 mm x 55 mm x 95.5 mm
Weight 304 g
Temperature (Operating) -20° to 50°C
Temperature (Storage) -30° to 60°C
Conformity CE, FCC, RoHS, REACH, WEEE, GenICam, GigE Vision
Warranty 3 years

Documents

atlas10.pdf - English datasheet of Lucid Atlas10 family
lucid-catalog-2018.pdf - English catalog of Lucid products
accessories.pdf - English datasheet of Lucid accessories


Software
