Matrox® Supersight Uno is a mid-range imaging computer ideally suited for intensive image capture and processing tasks.

It offers considerable expansion capabilities through seven PCIe® expansion slots ready to host multiple Matrox Imaging frame grabbers and third-party boards including high-end graphic cards.

Description

Matrox Supersight Uno at a glance

  • Leverage eighth-generation Intel Core processor to handle demanding imaging applications
  • Interface directly with GigE Vision® and USB3 Vision® cameras
  • Support for all major video interfaces — Camera Link®, CoaXPress®, DisplayPort, HDMI, and SDI — when used in conjunction with Matrox Imaging frame grabbers
  • Maximize I/O capabilities with seven PCIe slots accepting full-height, full-length cards

Solid foundation for demanding machine vision applications

Matrox® Supersight Uno is a mid-range imaging computer ideally suited for intensive image capture and processing tasks. It offers considerable expansion capabilities through seven PCIe® expansion slots ready to host multiple Matrox Imaging frame grabbers and third-party boards including high-end graphic cards.

This capable industrial PC (IPC) is the latest iteration of the Matrox Supersight series, delivering desktop-level processing performance and rich expansion capabilities, all packaged in a standard rugged enclosure. Powered by an eighth-generation Intel® Core™ processor, the Matrox Supersight Uno is fit for demanding machine vision applications.

Ample expansion possibilities

With seven third-generation PCIe expansion slots, the Matrox Supersight Uno accommodates the full range of expansion cards from one all the way to 16 lanes. Its 600 W power supply provides the necessary power to drive multiple frame grabbers and graphics boards.

The Matrox Supersight Uno provides input support for standard video interfaces — Camera Link, CoaXPress, DisplayPort, HDMI, and SDI — through Matrox Imaging frame grabbers.

Designed for factory use

A rugged steel 4U chassis enables straightforward installation in standard cabinets and exposed racks located in tough settings. Its cooling system ensures steady functioning for consistent maximum performance. Serviceable air filters keep the interior of the unit free of foreign particles. Quick-release, hot-swappable drive bays with RAID support increase system reliability and facilitate maintenance. Moreover, the vision controller shares exact dimensions with the Matrox Supersight Solo, facilitating substitution. A carefully managed lifecycle and long-term availability make the Matrox Supersight Uno a solid platform for delivering tailored high-throughput machine vision systems.

Reliable long-term availability

Components for the Matrox Supersight Uno have all been inten- tionally selected to ensure consistent long-term availability. This ensures OEMs can streamline their sustaining efforts, and maximize return on initial investments by avoiding the need to revalidate constantly changing commercial platforms.

Software Environment

Microsoft Windows 10 IoT Enterprise

Matrox Supersight Uno comes pre-installed with Microsoft Windows 10 IoT Enterprise 2019 (64-bit), which provides the familiarity, performance, and reliability of Windows 10, including multi-language support.

Field-proven application development software

Matrox Supersight Uno is supported by Matrox Imaging Library (MIL) 1 software, delivering reliable performance for more than 25 years. Featuring robust vision tools for image capture, processing, analysis, annotation, display, and archiving operations, MIL provides the quality and accuracy necessary for today’s challenging machine vision applications. Refer to the MIL datasheet for more information.

Connectivity

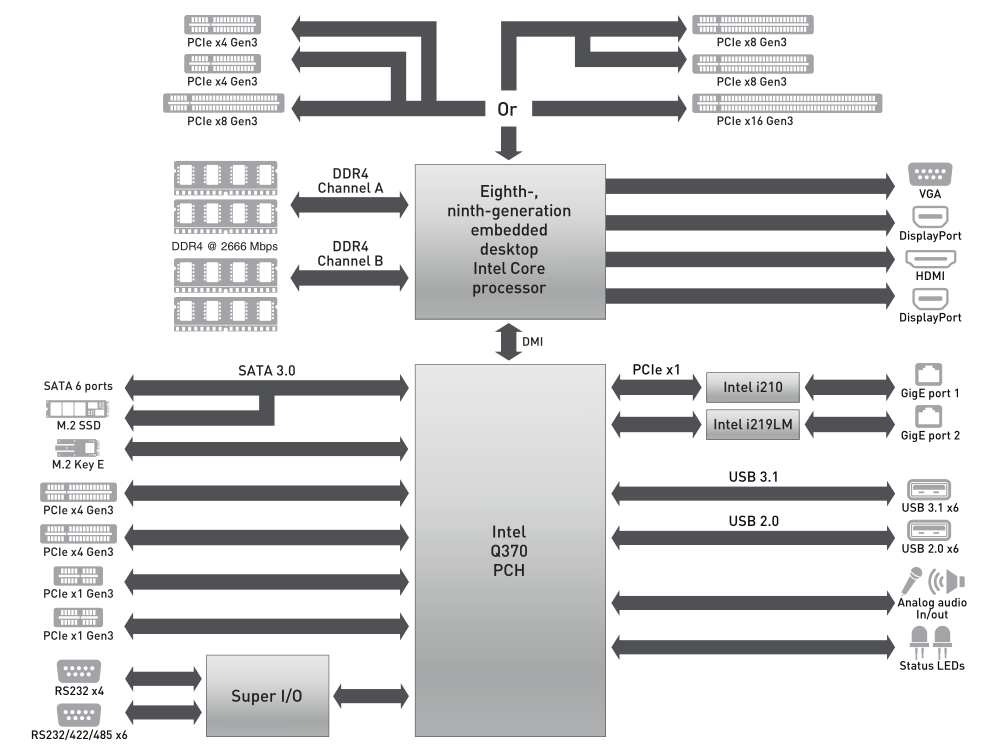

Matrox Supersight Uno block diagram

Matrox Supersight Uno

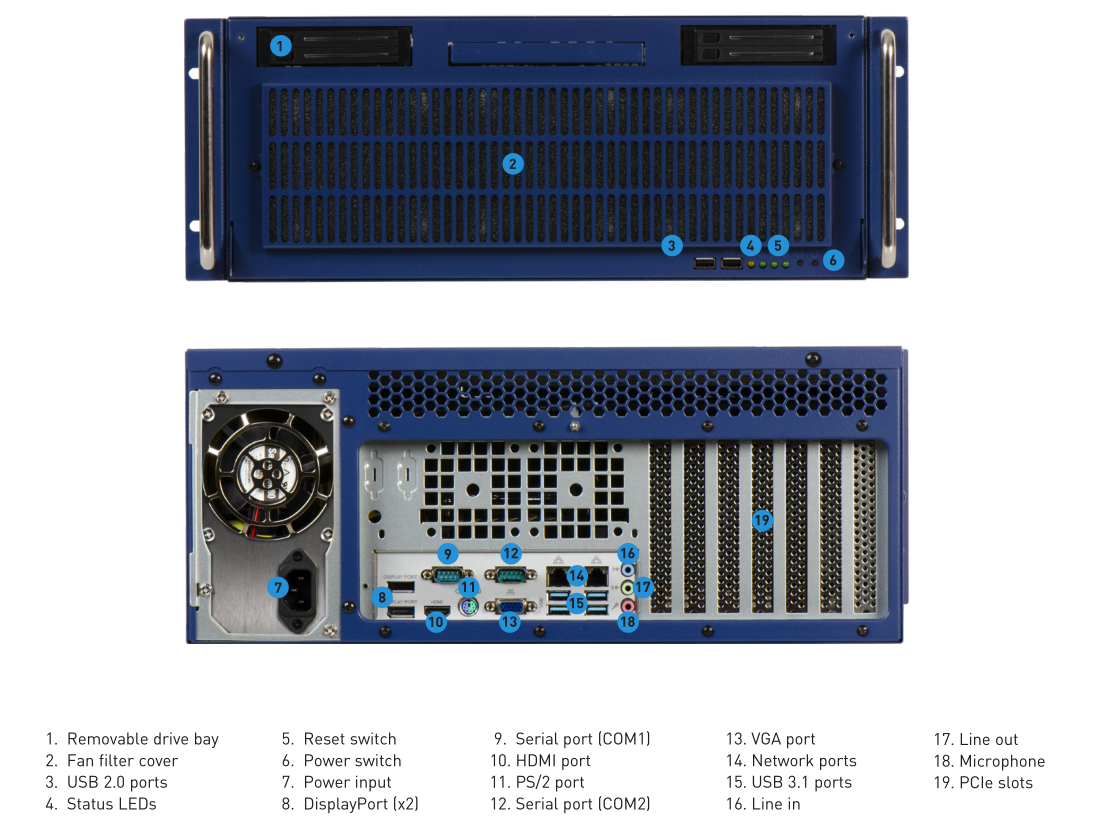

Matrox Supersight Uno front and back views

Matrox Supersight Uno

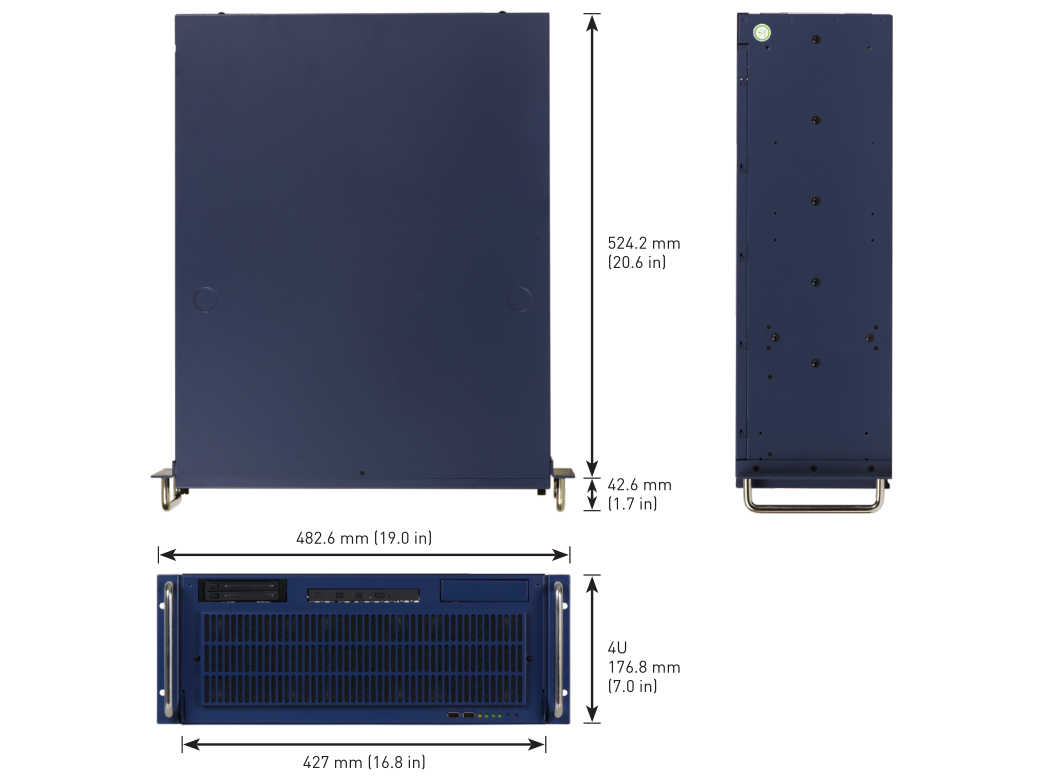

Matrox Supersight Uno chassis

Matrox Supersight Uno

Technical specification

SPECIFICATIONS

Motherboard

  • ATX form factor (30.5 cm x 24.4 cm or 12 x 9.6 in)
  • Intel Q370 Platform Controller Hub (PCH)
  • Four (4) 288-pin DDR4 long-DIMM sockets
    - Up to 64 GB DDR4-2666 SDRAM
  • Triple display
    - One (1) VGA output
      Up to 1920x1200 @ 60 Hz
    - One (1) HDMI 1.4 output
      Up to 4096x2160 @ 24 Hz
    - One (1) DisplayPort 1.2 output
      Up to 4096x2304 @ 60 Hz
  • Two (2) Gigabit Ethernet ports (10/100/1,000)
    - One (1) Intel Ethernet Connection I210
    - One (1) Intel Ethernet Connection I219-LM
  • Twelve (12) USB ports
    - Four (4) USB 3.1 ports
    - Two (2) USB 2.0 ports
    - Two (2) USB 3.1 ports (internal)
    - Four (4) USB 2.0 ports (internal)
  • Six (6) SATA3 ports (one shared with M.2 Key M)
    - Support for RAID 0, 1, 5, and 10
  • One (1) mini-PCIe (full/half) connector
  • One (1) M.2 Key M (2242/2260/2280) connector (used by 128 GB SSD)
  • One (1) M.2 Key E (2230) connector
  • Stereo line-in
  • Stereo line-out
  • Mic-in
  • Ten (10) serial ports
    - Two (2) RS-232/RS-422/RS-485 ports
    - Four (4) RS-232/RS-422/RS-485 ports (internal)
    - Four (4) RS-232 ports (internal)
  • One (1) PS/2 combo connector
  • Seven (7) PCIe Gen3 slots
    - Slot 1: PCIe x16 or x8 or x8
    - Slot 2: PCIe N/A or N/A or x4
    - Slot 3: PCIe N/A or x8 or x4
    - Slot 4: PCIe x4
    - Slot 5: PCIe x1
    - Slot 6: PCIe x4
    - Slot 7: PCIe x1

Memory

  • 16 GB DDR4-2666

Storage

  • 128 GB M.2 2280 SATA3 SSD

Chassis

  • Dimensions (L x W x H): 52.4 x 48.2 x 17.8 cm (20.6 x 19.0 x 7.0 in)
  • Hinged front panel
  • Recessed reset button
  • Push-button power switch
  • Power and HDD notification LEDs

Mounting

  • Horizontal or vertical
  • 4U (19 in) rack
  • Removable rack ears
  • Removable rack handles

Drive Bays

  • Front-accessible
  • Two (2) 2.5 in, hot-swappable drive bays

Power supply

  • Integrated 600 W power supply
  • AC input
    - 100–240 VAC
    - 47–63 Hz
    - 10 A/5 A at any low/high range input voltage
    - 80 Plus Silver rated
    - Power-factor corrected
  • DC input
    - +3.3 VDC @ 25 A
    - +5 VDC @ 25 A
    - +12 VDC @ 45 A
    - -12 VDC @ 0.8 A
    - +5 VSB @ 3.5 A
  • Supplemental power connectors
    - Six (6) 4-pin peripheral (12 VDC & 5 VDC)
    - One (1) 8-pin EPS CPU
    - Four (4) 6-pin PCIe power (12 VDC) or 8-pin PCIe power (12 VDC)

Certifications

  • FCC class A
  • CE Class A
  • RoHS-compliant

Environmental

  • Operating temperature: 10°C to 45°C (50°F to 113°F)
  • Storage temperature: -40°C to 85°C (-40°F to 185°F)
  • Relative humidity: Up to 90% (non-condensing)

Software

  • Pre-loaded with Microsoft Windows 10 IoT Enterprise 2019 (64-bit)
  • Pre-loaded with MIL 10 (run-time)

ORDERING INFORMATION

Hardware

Part number
Description
SU-MTRX-01 Matrox Supersight Uno integrated unit with Intel Core i5-8500, 16 GB DDR4 RAM, 128 GB M.2 MLC SSD, Microsoft Windows 10 IoT Enterprise 2019. Note: The use of this product is governed by Microsoft Software License Terms, among others.

Software

Software
Refer to MIL datasheet. Note: Complete MIL SDK sold separately.



Endnotes:
1. The software may be protected by one or more patents; see www.matrox.com/patents for more information.
