Lens Goyo Optical GM12HR61220MCN

Lens Goyo Optical GM12HR61220MCN

MV lens, fixed focal f=12 mm, for 4/3" up to 12 MP sensors, with C-mount, and short minimum object distance.

Standard MV fixed focal lens for 12 megapixel cameras with C-mount. With manual focus and iris.

Description

Features:

  • Type: MV Machine Vision
  • Focal length: 12 mm
  • Iris range: F2.0 - 22
  • Lens format: 4/3"
  • MOD: 150 mm
  • Lens Mount: C-mount

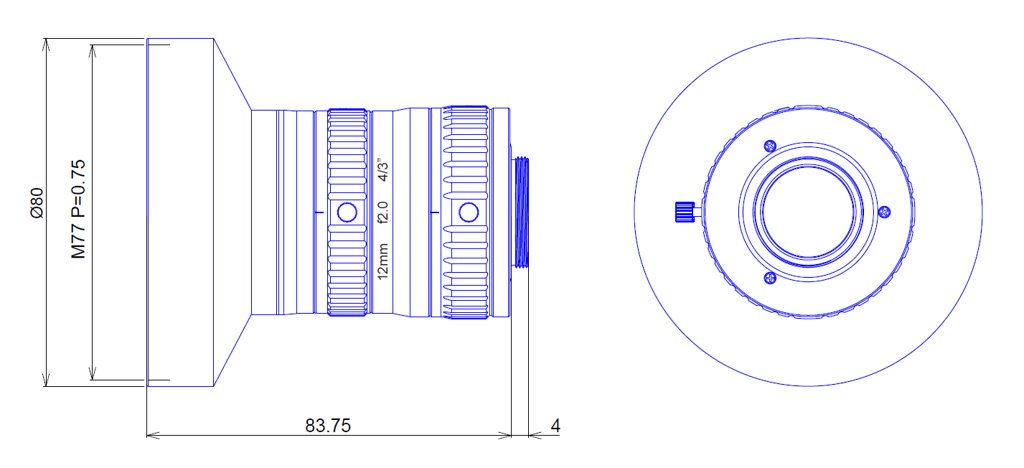

Goyo Optical GM12HR61220MCN technical drawing

Technical specification

Model name GM12HR61220MCN
Product family GM12HR6
Product type MV Machine Vision, fixed focal, manual focus and iris
Lens format 4/3"
Focal length 12 mm
Iris range F2.0 - 22
MOD 150 mm
Angle of View 4/3" 75.46° x 61.08°
Resolution 260 lp/mm, up to 12 MP
TV Distortion -
Mount C-mount
Filter Thread M77 P=0.75
Lock screws Focus and Iris
Dimension (D x L) Ø80.0 x 83.75 mm
Weight 450 g
Temperature (Operating) -10° to 50°C
Warranty 1 year

Documents

gm12hr61220mcn.pdf - English datasheet of Goyo Optical GM12HR61220MCN
